The best all-in-one tracking solution for racing.
Centimetric accuracy, nothing to install on site.
Enrich your fan experience

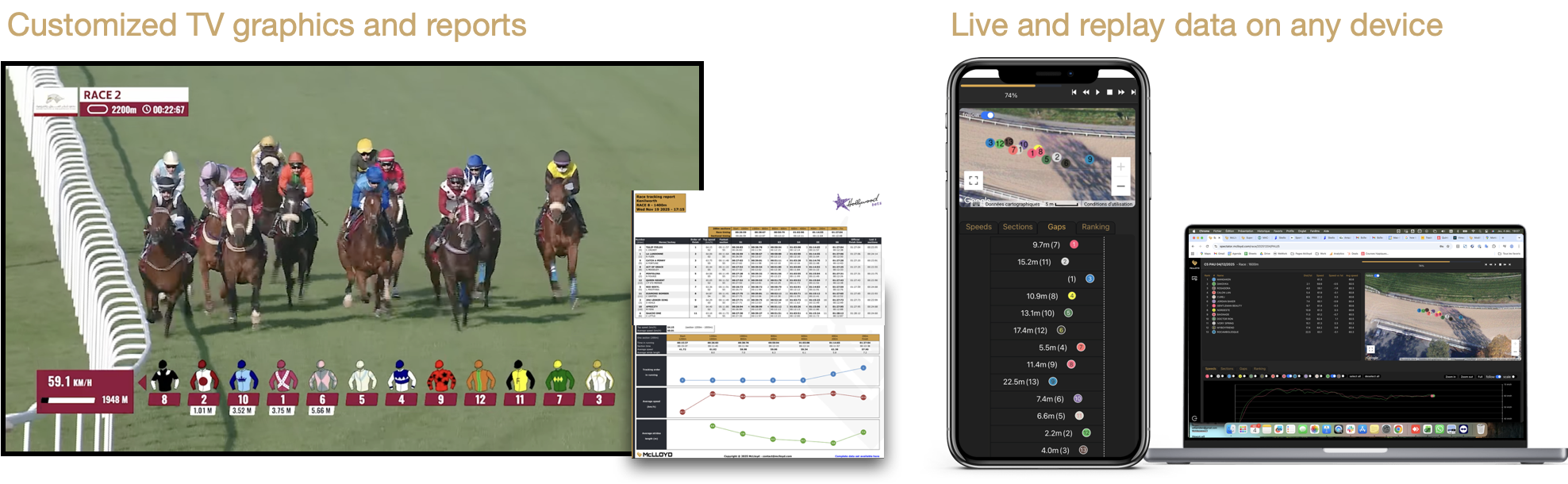

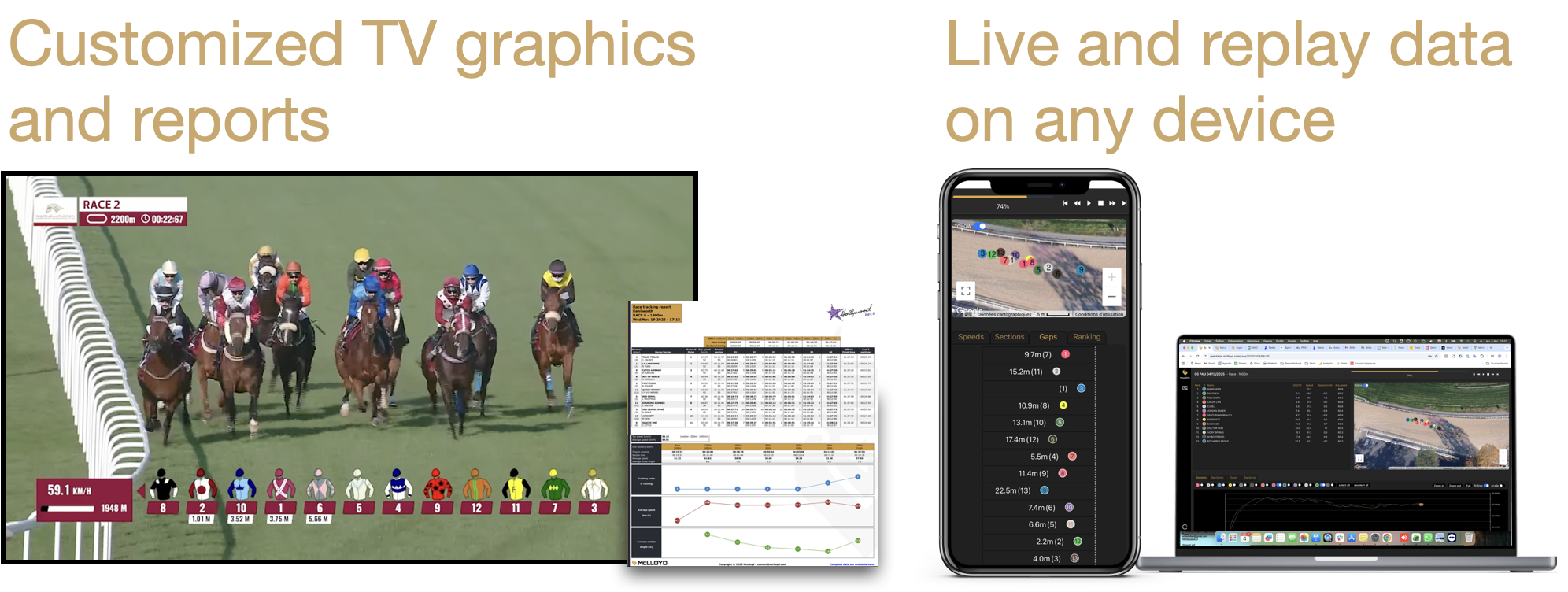

Sports tracking gives access to new data for performance enhancement, but it also changes the uses of spectators and viewers by offering new perspectives of real-time production : insertions, 3D, virtual reality, augmented reality...
The insertion of this data in live or replay intensifies the fan’s immersion in the event.
McLloyd is the only player able to deliver real-time data in the centimeter accuracy criteria required by the sprint racing world without any infrastructure to install thanks to its HPv2 sensor.
The insertion of this data in live or replay intensifies the fan’s immersion in the event.
McLloyd is the only player able to deliver real-time data in the centimeter accuracy criteria required by the sprint racing world without any infrastructure to install thanks to its HPv2 sensor.
Tracking the most prestigious horse races!
PARISLONGCHAMP – PARIS-VINCENNES – CHANTILLY – DEAUVILLE – ENGHIEN – CABOURG
McLloyd tracks the biggest horse trotting and gallop races in France. The unrivaled precision of its miniaturized sensor allows fans to fully experience the races from the start to the finish line.
McLloyd tracks the biggest horse trotting and gallop races in France. The unrivaled precision of its miniaturized sensor allows fans to fully experience the races from the start to the finish line.
Le Trot was McLloyd’s first client for its horse data tracking solution.
OLIVIER DELLOYE
CEO - FRANCE GALOP
“McLloyd’s tracking system allows us to obtain long-awaited reliable data on sectional timings (and associated speed) for each competitor. It is a breakthrough for professionals and gamblers. The data collected also makes it possible to enrich the real-time racing experience for the general public, whether on TV, on racetrack screens or on 3D VR applications.“
CELINE BLACHE
PROJECT MANAGER - PMU
“Race tracking allows a thorough reading of the performance of horses and offers a high value service to all our customers. The quality of the data makes it possible to objectify different levels of performance: speed, ranking, time, distance on sections of course … From the bettor’s point of view, the ideal would be to be able to analyze a race with the completeness of the tracking data. on all starters, which would imply a maximum coverage of races tracked in France.”
Watch the Qatar Prix de l'Arc de Triomphe 2022 replay
McLloyd High Precision v2 (HPv2), the best GPS tracking solution for racing and broadcast.
HPv2 is GPS/GNSS RTK quadri-constellation (GPS / GLONASS / BEIDOU / GALILEO) unit combined with an inertial movement unit (acceleromter, magnetometer, gyrometer) and an inter-tracker Ultrawide Band network. It is a full IOT device (3G/4G, no antenna needed) that delivers a very reliable and accurate data during racing and sports events. It has been conceived to match professional sport practice and broadcast standards and requirements (ergonomic, weight, resistance, latency, accuracy, autonomy etc.).
COMPONENTS
GPS/GNSS RTK L1/L2
Ultrawide Band Mesh LPS system
Transmission 2G/3G/4G LTE-M
Ultrawide Band Mesh LPS system
Transmission 2G/3G/4G LTE-M
ACCURACY
Extreme accuracy up to 1cm outdoor / 20 cm indoor
Low latency < 0,02s
Live data 10Hz
Reliable data even during crowded events
Low latency < 0,02s
Live data 10Hz
Reliable data even during crowded events
HARDWARE
Weight : 89g
Resistance : 300kg
Dimensions : 9,8 x 4,9 x 2,4 cm
Autonomy 6h live (can be extended)
Resistance : 300kg
Dimensions : 9,8 x 4,9 x 2,4 cm
Autonomy 6h live (can be extended)
FEATURES
Mobile solution, no antenna needed…
Ergonomique design for professional sport and racing
Waterproof, works until -20cm (ok for swimmers)
Ergonomique design for professional sport and racing
Waterproof, works until -20cm (ok for swimmers)
McLloyd High Precision v2 (HPv2), la meilleure solution de tracking GPS pour la course et le broadcast.
HPv2 is GPS/GNSS RTK quadri-constellation (GPS / GLONASS / BEIDOU / GALILEO) unit combined with an inertial movement unit (acceleromter, magnetometer, gyrometer) and an inter-tracker Ultrawide Band network. It is a full IOT device (3G/4G, no antenna needed) that delivers a very reliable and accurate data during racing and sports events. It has been conceived to match professional sport practice and broadcast standards and requirements (ergonomic, weight, resistance, latency, accuracy, autonomy etc.).
COMPONENTS
GPS/GNSS RTK L1/L2
Ultrawide Band Mesh LPS system
Transmission 2G/3G/4G LTE-M
Ultrawide Band Mesh LPS system
Transmission 2G/3G/4G LTE-M
ACCURACY
Extreme accuracy up to 1cm outdoor / 20 cm indoor
Low latency < 0,02s
Live data 10Hz
Reliable data even during crowded events
Low latency < 0,02s
Live data 10Hz
Reliable data even during crowded events
HARDWARE
Weight : 89g
Resistance : 300kg
Dimensions : 9,8 x 4,9 x 2,4 cm
Autonomy 6h live (can be extended)
Resistance : 300kg
Dimensions : 9,8 x 4,9 x 2,4 cm
Autonomy 6h live (can be extended)
FEATURES
Mobile solution, no antenna needed…
Ergonomique design for professional sport and racing
Waterproof, works until -20cm (ok for swimmers)
Ergonomique design for professional sport and racing
Waterproof, works until -20cm (ok for swimmers)
System architecture
Many use cases in outdoor and indoor sports
McLloyd provided the GPS tracking system for the virtual graphics of the Indian Grand Prix of the Seas in Mumbai, India, one of the UIM world championship’s official powerboat events, broadcasted worldwide by ESPN. It was thus possible to compare in real time (speed, classification, positioning …) the twelve P1 Panther Boats up to 115km / h (~ 62 knots).
Developed with
McLloyd's 4 major patents
Crystal 8
Real-time data guaranteed in saturated radio frequency space (stadium …).
UWB Mesh
Decimetric accuracy guaranteed by the creation of a sensor network in UWB.
SpinFusion
Fusion of data from the three sensor sources: IMU, GPS and Ultra Wide Band.
CarbonFit
Unique process for the production of high resistance cases.
Awards and distinctions
2017 – Laureate from the Global Innovation Contest (Phase 2)
The World Innovation Competition aims to finance innovative projects carried out by companies and to create the French “champions” of tomorrow, creators of value, exports and jobs.
2018 – Laureate from the digital innovation contest
i-Nov
The call for projects “Innovation competition – i-Nov” is a support system funded by the Investments for the Future Program (PIA) which aims to select innovation projects with particularly strong potential for the French economy.
2019 – Seal of excellence grade from the European Commission and French laureate Horizon2020
The European Union’s research and innovation funding program for the period 2014-2020.
